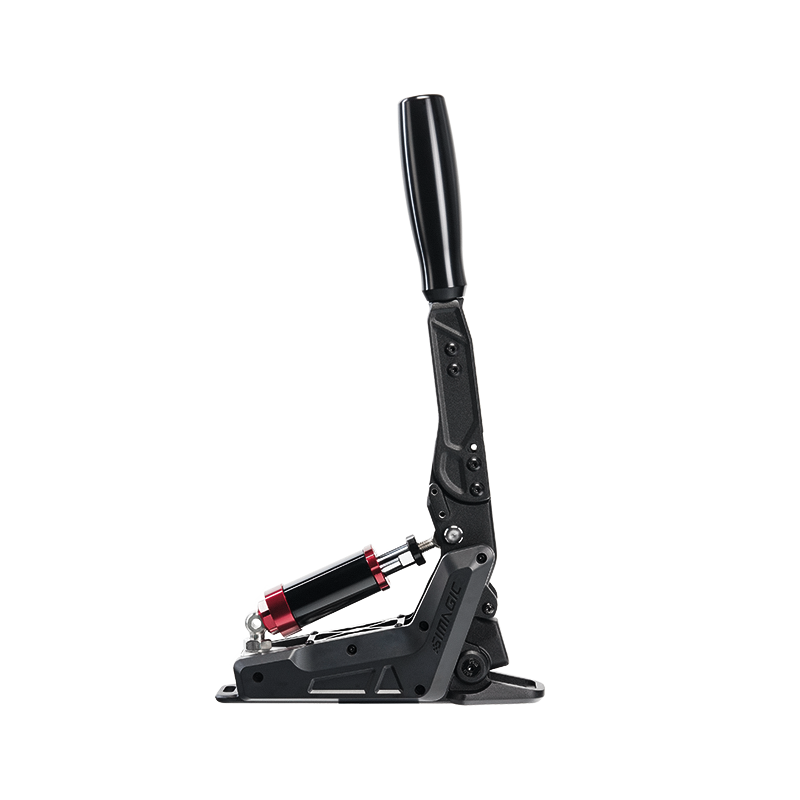

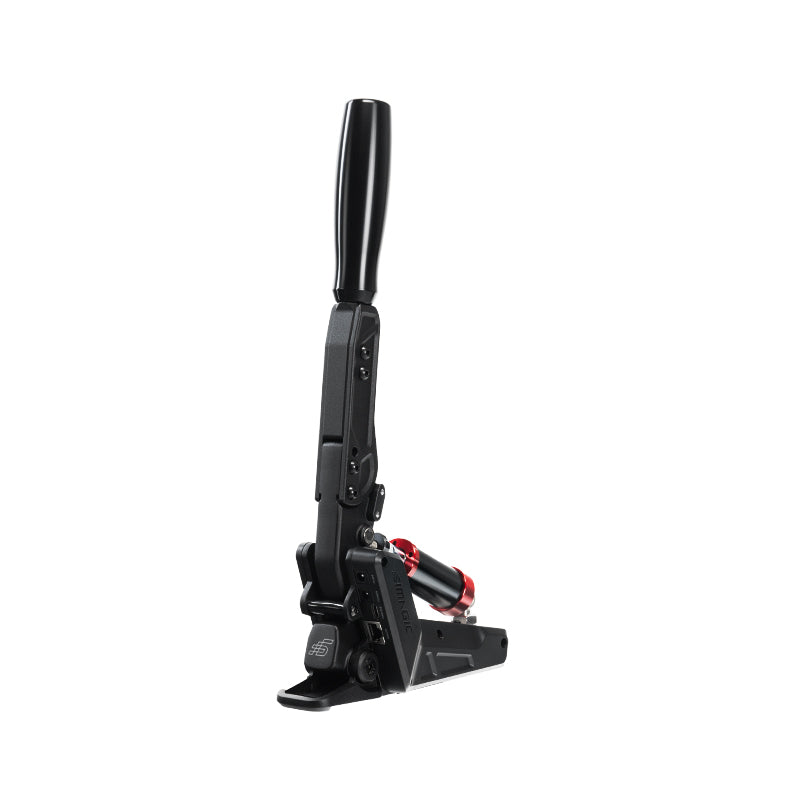

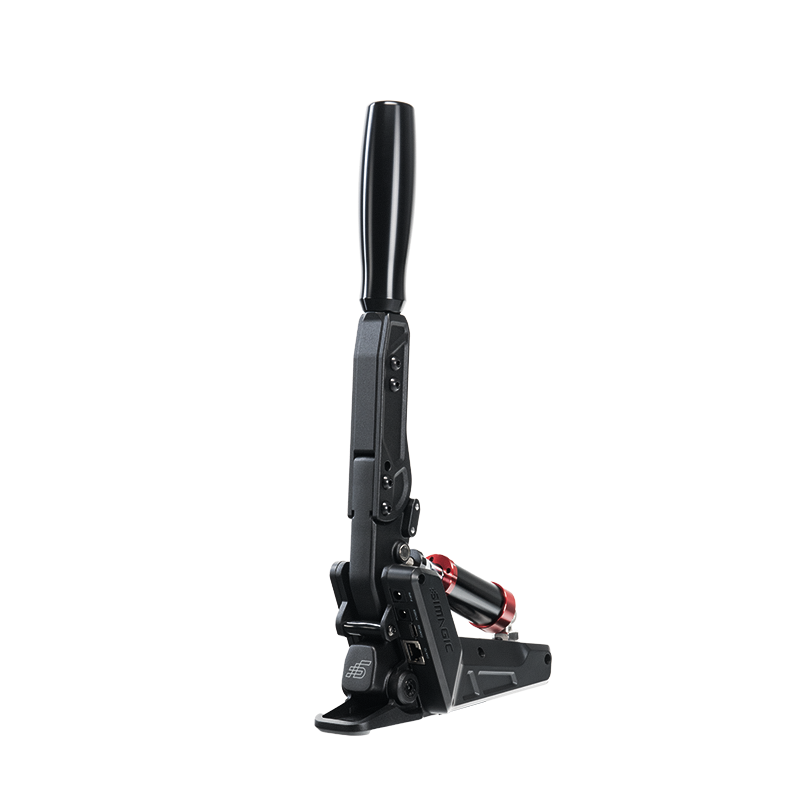

SIMAGIC TB-NEO Handbrake
TB-NEO Handbrake
Built to Evolve.
Expandable Modular System
Patented Full-Range Adaptive Sensing Tech
Die-Cast Aluminum Body
Adjustable Handbrake Force
Dual Modes, Five Angles
Multi-Port Connectivity
MODULAR
Build It Your Way
TB-Neo is built around an expandable modular platform. Swap elastomers to tune the resistance, add a hydraulic module for damped response, or integrate a haptic reactor for telemetry-driven feedback.
Elastomer Kit
P-HYS Hydraulic Module
P-HYSi Hydraulic Module
P-HPR GT Haptic Pedal Reactor
P-HPR Haptic Pedal Reactor
*Hydraulic and haptic modules sold separately.
PRECISION
Full-Range Adaptive Sensing Tech
SIMAGIC’s patented Full-Range Adaptive Sensing Technology optimises gain across the full range, capturing fine movement while remaining stable under heavier loads. The result is smooth, repeatable input from initial engagement to full pull.
TB-Neo Handbrake
Comparable Products
Force (kg)
Time (s)
Note: A smoother curve means a cleaner, more controllable signal. TB-Neo maintains consistent output with fewer fluctuations throughout the pull.
DURABILITY
Built to Last
Die-cast aluminium construction and precision CNC machining deliver long-lasting rigidity and durability.
CUSTOM TUNING
Your Feel, Your Way
Fine-tune resistance, travel and return with interchangeable elastomers. TB-Neo arrives with a versatile standard setup, plus additional hardness options for further adjustment.
Included Replacement Elastomers
Black O-Ring
Green O-Ring
Green T-Type
Hardness (soft → hard):
Yellow Spring < Green T-Type < Green O-Ring < Black O-Ring
RECOMMENDED SETUPS
Dial It In
Use these recommended combinations as a baseline, then fine-tune the pull to suit your driving style.
Light & Smooth Pull
Yellow Spring ×1 + Green O-Ring ×4
Force (kg)
Compression (mm)
Smooth, light resistance with quick return and long travel.
Firm Stop
Yellow Spring ×1 + Black O-Ring ×4
Force (kg)
Compression (mm)
Strong return with a direct, solid stop and shorter travel.
Dual-Stage Feel
Green O-Ring ×4 + Black O-Ring ×4
Force (kg)
Compression (mm)
Soft at first, then firmer as you pull.
Hydraulic Feel
Yellow Spring ×1 + Green T-Type ×5 (Hydraulic Module Only)
Force (kg)
Compression (mm)
Damped, linear response with a realistic hydraulic feel.
ADJUSTABILITY
5 Angles. 2 Modes. Zero Hassle.
Switch between horizontal and vertical configurations, then choose from five handle angles. Build a natural position for street, rally, drift or track-focused setups.
CONNECTIVITY
Ready for Every Setup
Connect directly to a PC or compatible SIMAGIC wheelbase. Add P-HPR haptics for telemetry-driven feedback, with dedicated ports for power, data and ecosystem expansion.
DC: Provides connection for P-HPR series linear haptic motors.
DC: Supports connection to an external expansion power supply.
USB-C: Supports power supply and data transmission with PC and Alpha Wheelbase.
RJ45: Supports CAN FD communication and power connection with Alpha EVO Wheelbase.
TRUSTED PERFORMANCE
Pull After Pull
A high-precision load cell captures every input with stable, repeatable accuracy across the full range.
SOFTWARE
Tune Real-Time with SimPro Manager
Adjust response, travel and input curves through SimPro Manager. With compatible haptic modules installed, SimHub support unlocks deeper telemetry-driven control.
Specifications
Product Name
TB-Neo Handbrake
Base Material
Aluminum Alloy, ABS + PC
Grip Material
POM
Load Cell Range
100KG (Standard)
Resolution
12-Bit (4096 Counts) High-Precision Sensor
Electrical Specifications
DC:5V/1A 5W MAX
USB Connection
PC, SIMAGIC Wheelbase
Adjustable Travel
Supported
Adjustable Spring Tension
Supported
Angle/Position Adjustment
Supported
Adjustable Linearity
Supported
Adjustable Resistance
Supported
Adjustable Deadzone
Supported
Dimension
209.5 x 73.5 x 382.5 mm
Net Weight
1.36kg
Included Elastomers
Yellow Spring ×2 + Damper Spacer ×3
(Pre-installed)
Black O-Ring Elastomer ×8
Green O-Ring Elastomer ×8
Green T-Type Elastomer ×9
